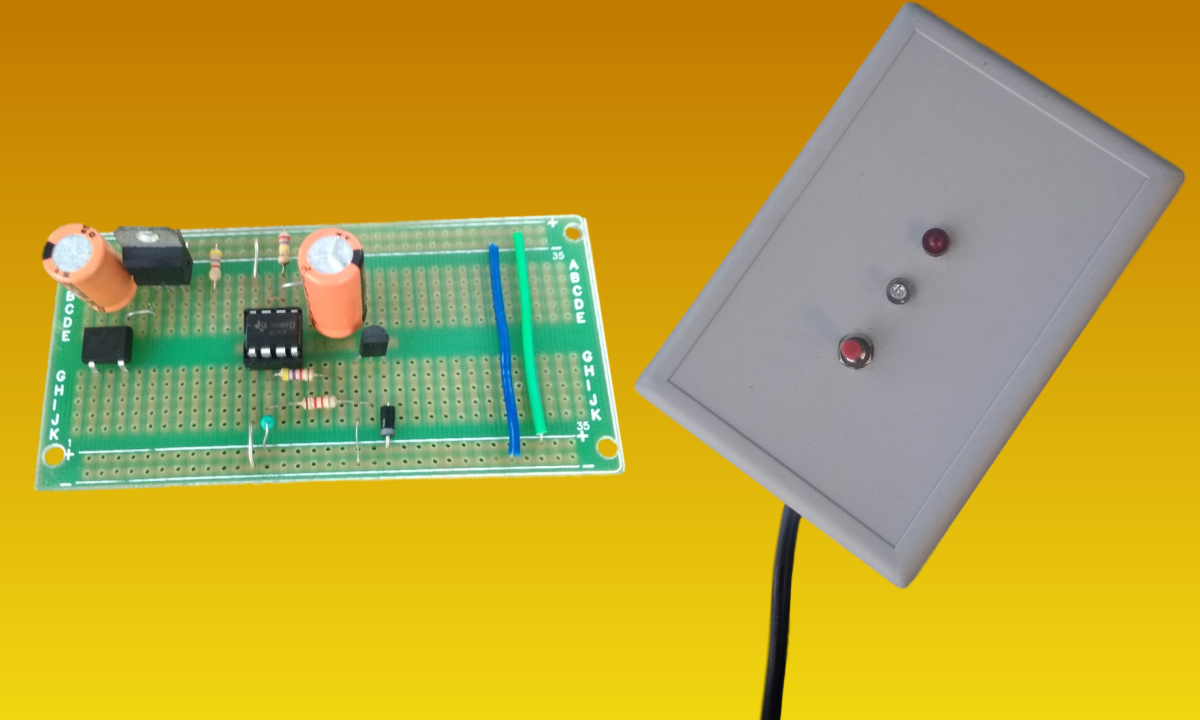

5 Minutes timer circuit using ic 555 To Control Electrical Devices

Looking for a simple 5 minutes timer circuit using IC 555 to control electrical devices? ⚡ The 555 timer IC is one of the most versatile integrated circuits used in electronics projects. In this project, we design a monostable timer circuit that turns on an electrical device for approximately 5 minutes and then automatically switches it off. This kind of circuit is useful for controlling appliances like lights 💡, ovens 🍳, fans, or any device that needs a fixed time operation.

With just a few components – resistors, capacitors, a relay, and the 555 timer IC – you can build this DIY timer circuit at home 🛠️.

📝 Parts Required

🔌 Resistors (1/4W)

• R1 – 4.7KΩ
• R2 – 270KΩ
• R3 – 10KΩ
• R4 – 4.7KΩ
• R5 – 1.2KΩ

🔋 Capacitors

• C1 – 470µF, 35V
• C2 – 1000µF, 25V

⚡ ICs

• U1 – 7812 Voltage Regulator
• U2 – NE555 Timer IC

🔄 Other Components

• DB1 – DB107 Bridge Rectifier
• Transformer – 0-15V or 0-18V, 350mA/500mA or 12v SMPS module
• RY1 – 12V Relay (Ampere rating based on load)
• D1 – IN4007 Diode
• Q1 – 2N2222 NPN Transistor
• S1 – Momentary Switch (NO)
• L1 – Red LED (Power indicator)
• L2 – Green LED (Load indicator)
• General Purpose PCB

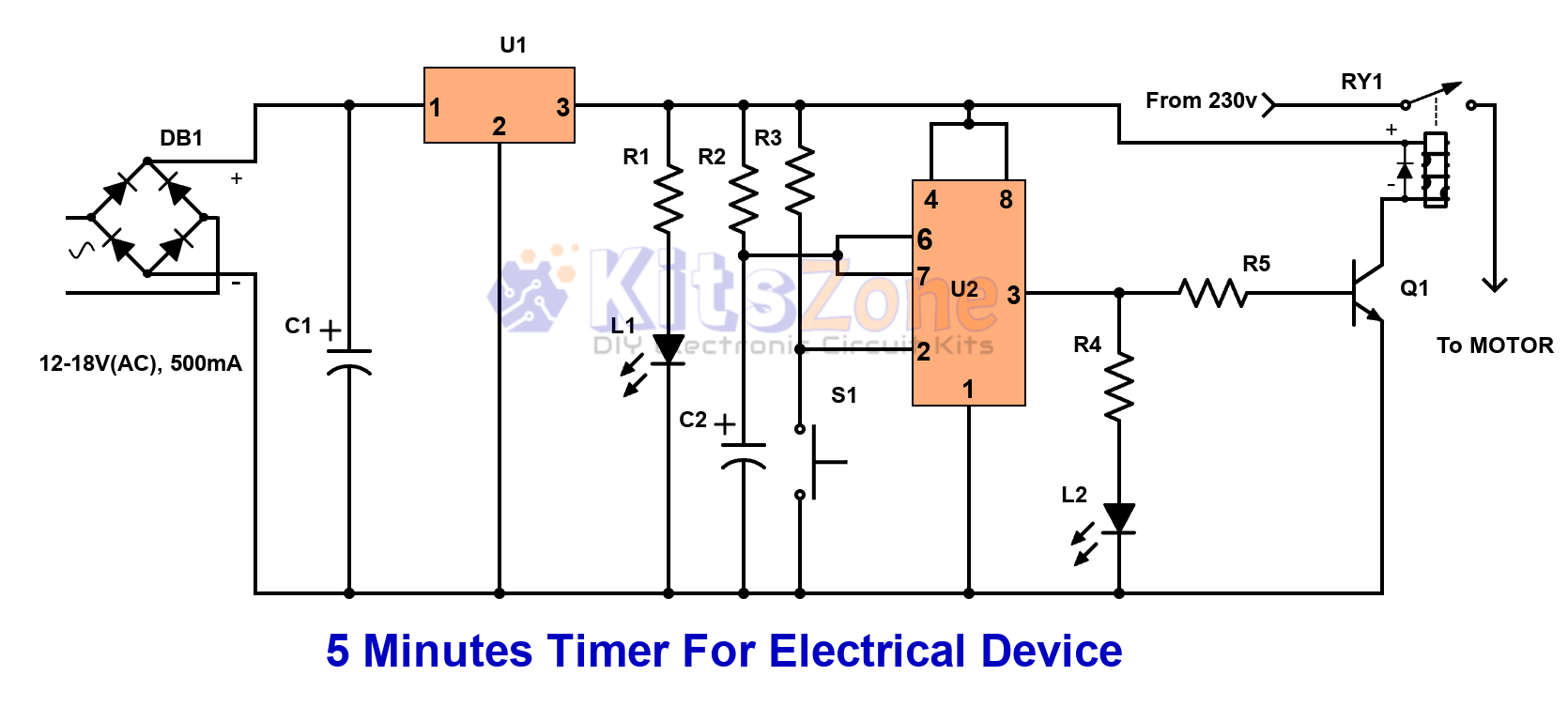

⚙️ Working of the 5 Minutes Timer Circuit

1. The AC voltage from the step-down transformer is converted to DC through the DB107 bridge rectifier.
2. A 7812 voltage regulator provides a stable 12V supply to the circuit.
3. The 555 timer IC is configured in monostable mode. The timing is calculated using the formula: 👉 T = 1.1 × R × C With the given values, the ON time is approximately 5 minutes.
4. When you press the momentary switch (S1), the timer starts, and the relay switches ON the connected electrical device.
5. Once the preset time is over, the relay turns OFF automatically, disconnecting the device.
6. LED L1 (Red) indicates power ON, while LED L2 (Green) shows the device is active.

🎯 Applications of 5 Minute Timer Circuit Using IC 555

• ⏳ Automatic cutoff for lights or fans.
• 🔥 Timer for ovens, gas stoves, or heaters.
• 💧 Water pump or motor control.
• ⚡ General appliance timer switch.

✅ Advantages

• Simple design with readily available components.
• Provides automatic cutoff after 5 minutes.
• Can be modified for longer/shorter durations by adjusting R & C values.
• Ideal for DIY electronics projects.

🎥 Working Video

🏁 Conclusion

The 5 minutes timer circuit using IC 555 ⏱️ is a simple yet powerful DIY project for controlling electrical devices automatically. With just a few components, you can build a reliable circuit that saves energy ⚡ and adds convenience to your daily life. Whether it’s switching off lights, fans, or small appliances, this project shows how versatile the 555 timer IC really is.
